dissoSWITCH :

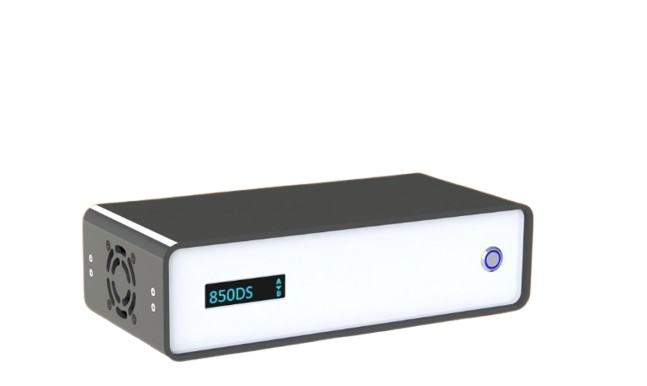

The dissoSWITCH® is a valve box for redirecting sample and communication paths between different systems, whether they are compatible with each other or not. It is simple to connect, a 16 position three-way valve device, which can connect with up to 25 communication pins. It does not need additional software for operation. A single push-button switch redirects communication paths between different systems (PCs, sampling stations, dissolutions etc.) and also serves as the main ON/OFF switch. Valves are used to redirect sample paths and are carefully chosen to sustain the most demanding solutions.

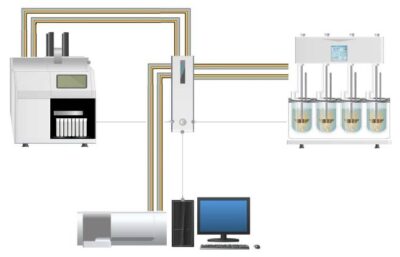

Configuration example :
The perfect self-explaining scenario for dissoSWITCH unit use is
a combination of:
Agilent Cary 60 UV/Vis
Spectrophotometer
Agilent 850-DS Sampling Station
Agilent Cary 60 UV/Vis
Spectrophotometer
Other application options :
- 1x Agilent 850-DS + 2 x Agilent 708-DS in case of expanded procedures
- 1 x Agilent 708-DS + 2 x Agilent 850-DS if there is a need to use vials and well plates simultaneously.
- Other possibilities in combination with spectrophotometers, auto-samplers or PCs that are usually not compatible with each other.
- Bypassing filter changer, manual filters, etc.
One click provides two operation modes :
Sampling station control :
Option 01
Shorter sample lines leads to minimising dead volume. Extending the life time of the flow through cuvettes due to the bypass, when they are not needed.
PC control :
Option 02
The methods are set in and controlled from the computer using the Carry Win-UV SW when while system is in use.
Technical information :
Functions
2×8-position 3-way valve switching device
Comm Ports:
3xRS232, 1x mini USB
Weight
1.3 kg
Max Consumption:
30 W
Controls
none required, optional control via PC (USB or RS232)
Dimensions
285x130x80 mm (WxDxH)
Required supply:
100 V – 240 V AC (+/-10 %), 50/60 Hz, 1 A
